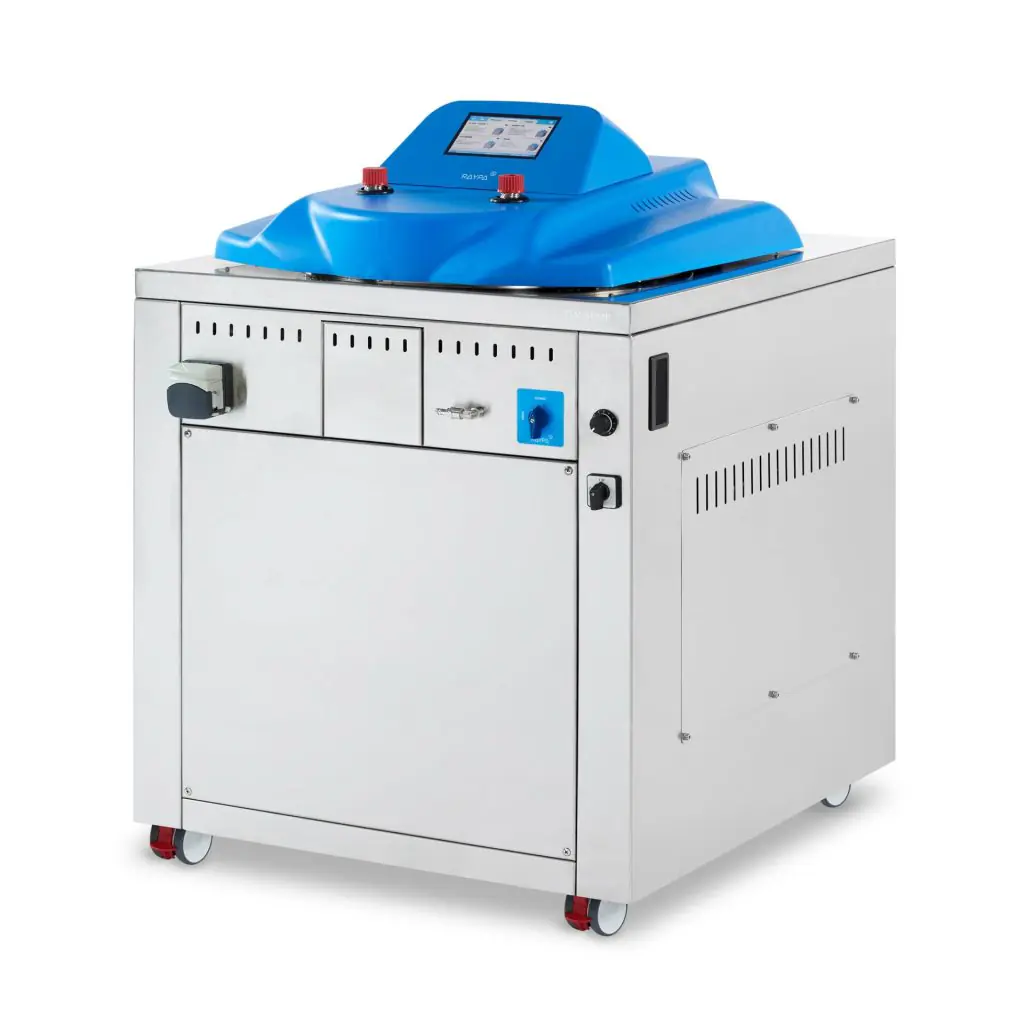

Series TLV – MP Expert Media Preparator

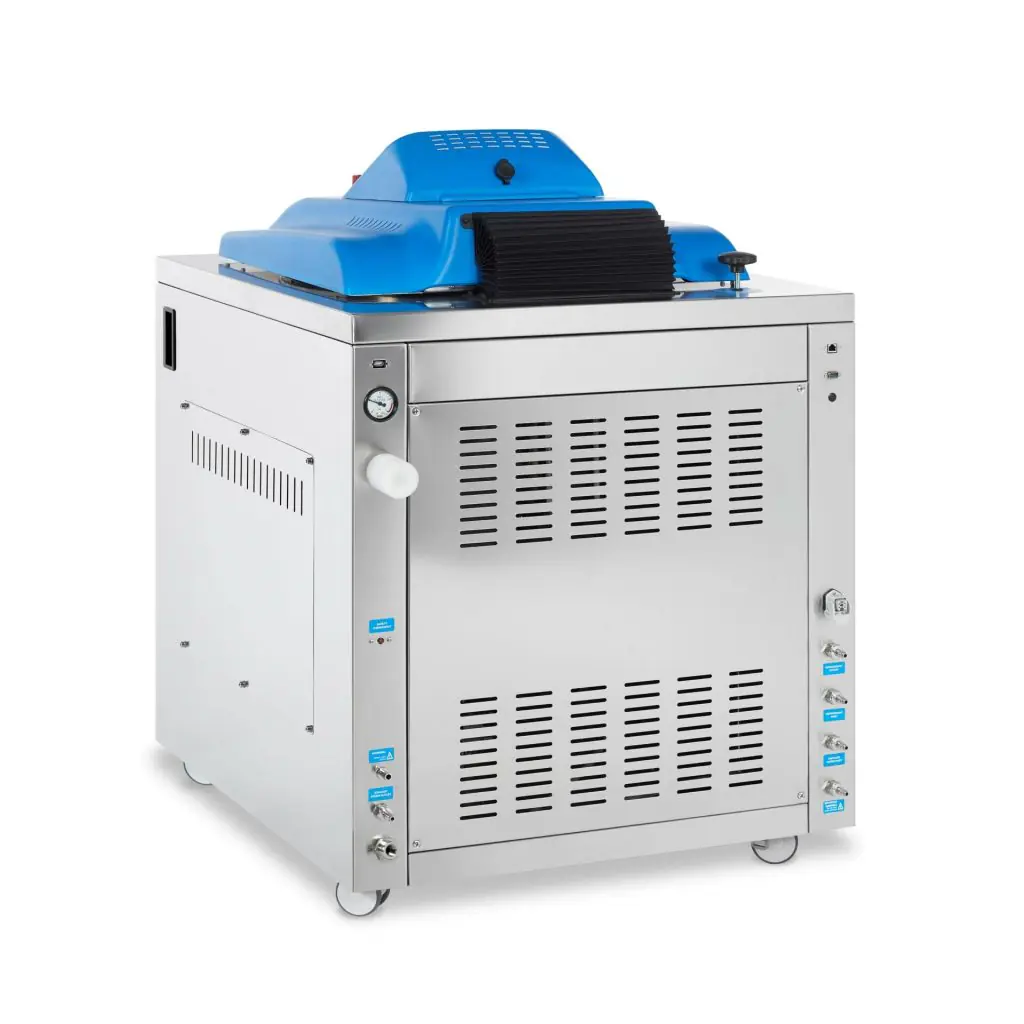

TLV-MP Series of Media Preparators. Floor models ranging from 36 liter to 90L.

Manufacturer: Raypa, Barcelona Spain

SKU: TLV-MP-1

Request Information

Learn more

Description

The TLV-MP series is a state of the art, industry leading Media Preparators that streamlines the operative workflow for microbiology laboratories. In one single device it integrates the preparation, sterilization, and dispensation of high quality culture media with outstanding batch to batch reproducibility. TLV-MP is designed to reduce total run time and deliver high volumes of sterile culture media thanks to its efficient heating system and fast cooling phase at the end of the sterilization process. Its advanced design allows for total traceability of all operations executed.

Features

Functions as an autoclave and as a media preparator
Sterilization chamber made of AISI-316L stainless steel
Fast cooling by water cooling coils
Optional compressed air system

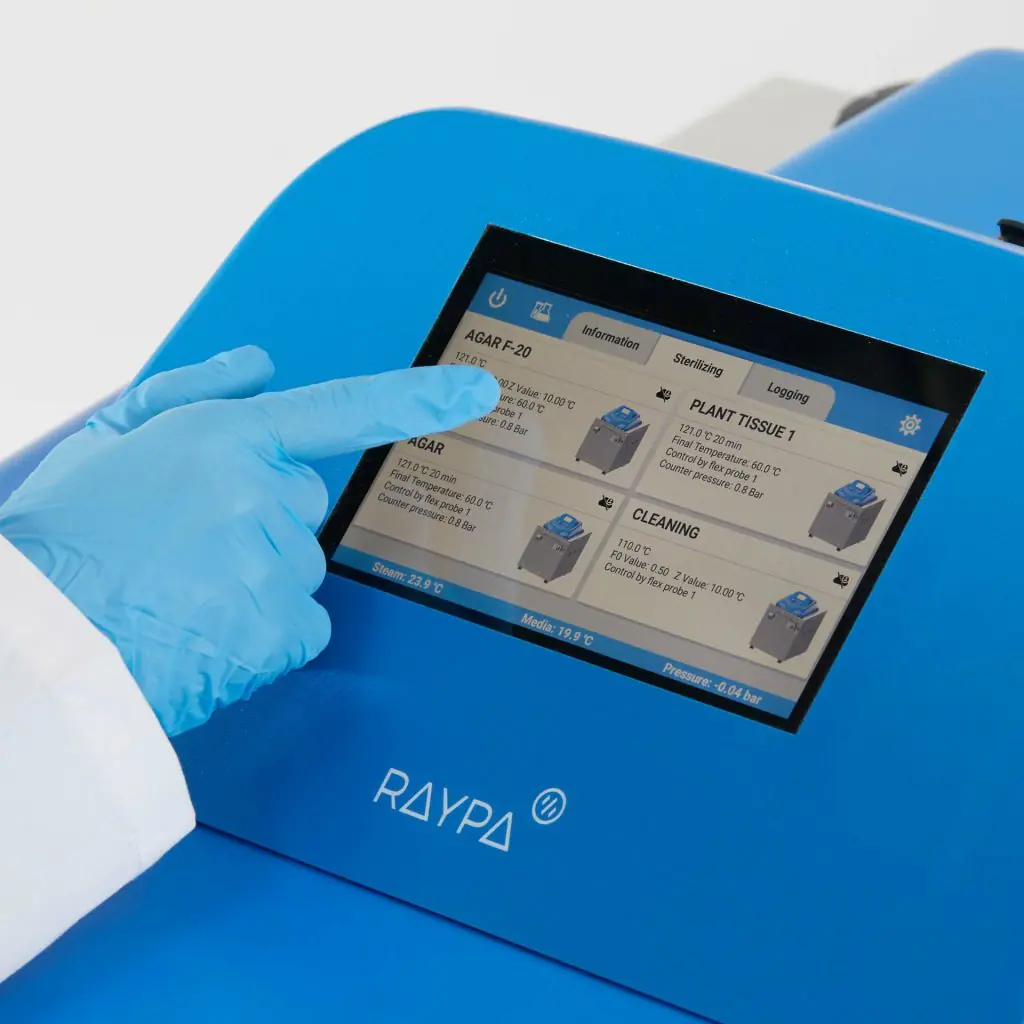

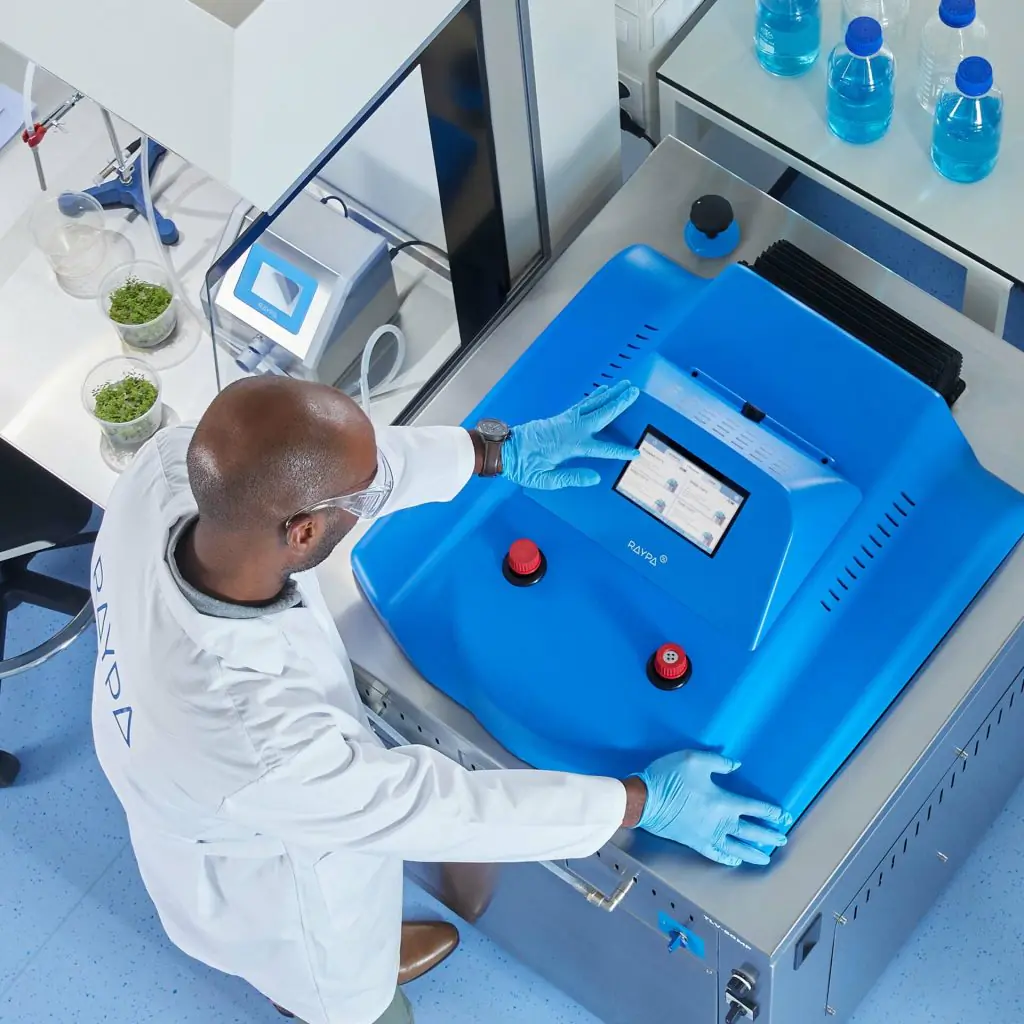

7″ Color TFT-LCD touchscreen
50 programs available, adjustable by time, temperature or F_o, with the option of temperature control by flexible temperature probe or directly to camera
You can also decide to keep the temperature constant at the end of the cycle, adjust the dosing temperature, stirring speed and backpressure value during dispensing

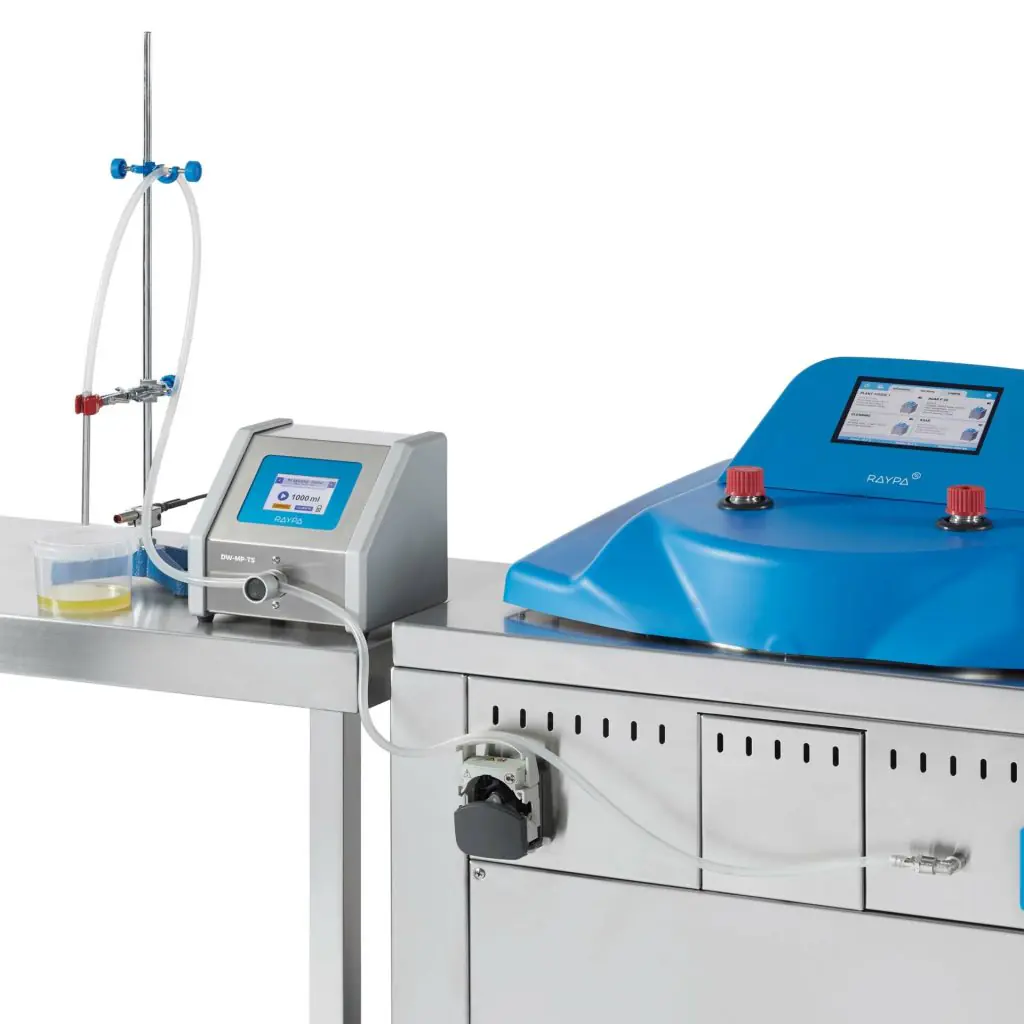

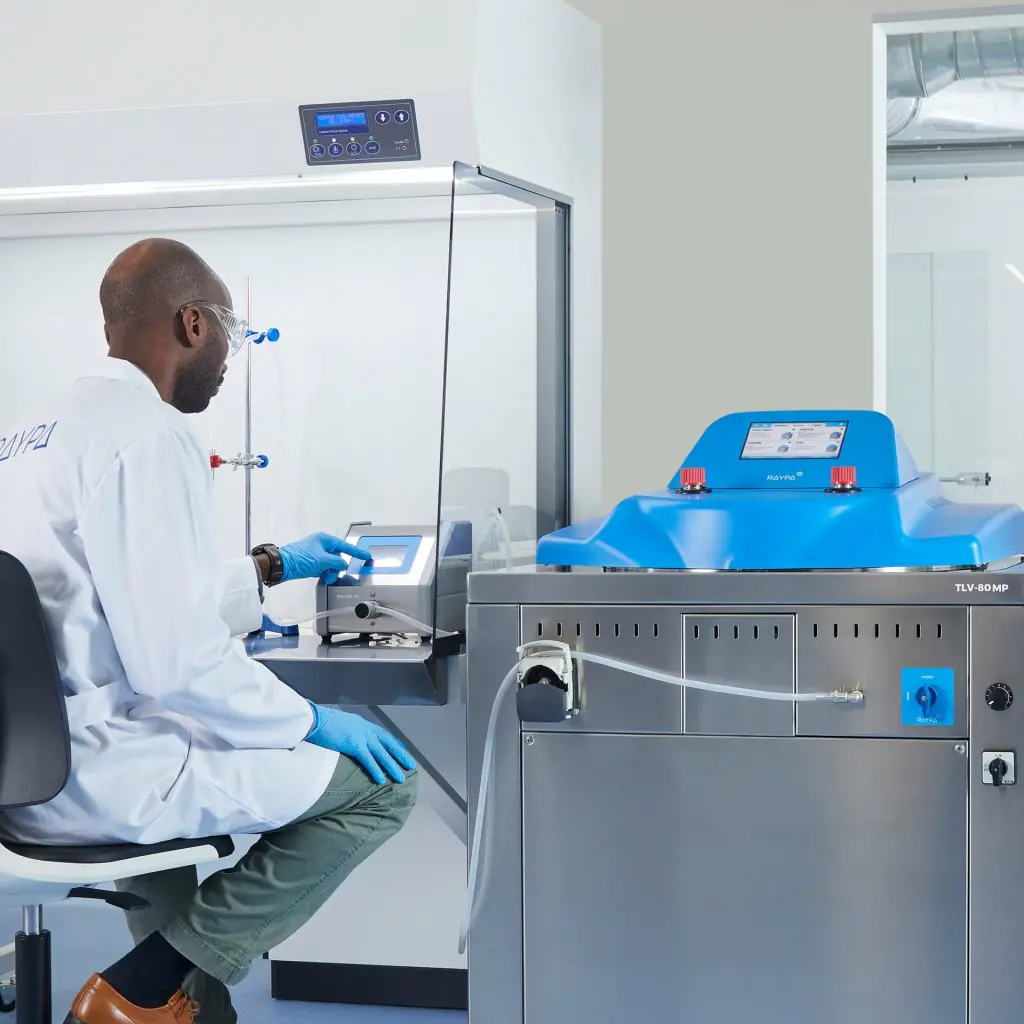

Accurate dosing by pedal or peristaltic pump pulses in repetitive filling operations. Optional external dosing control with the DW-MP culture media dosing station accessory
Direct power supply from the water circuit or optionally manual addition in the second sterilization chamber

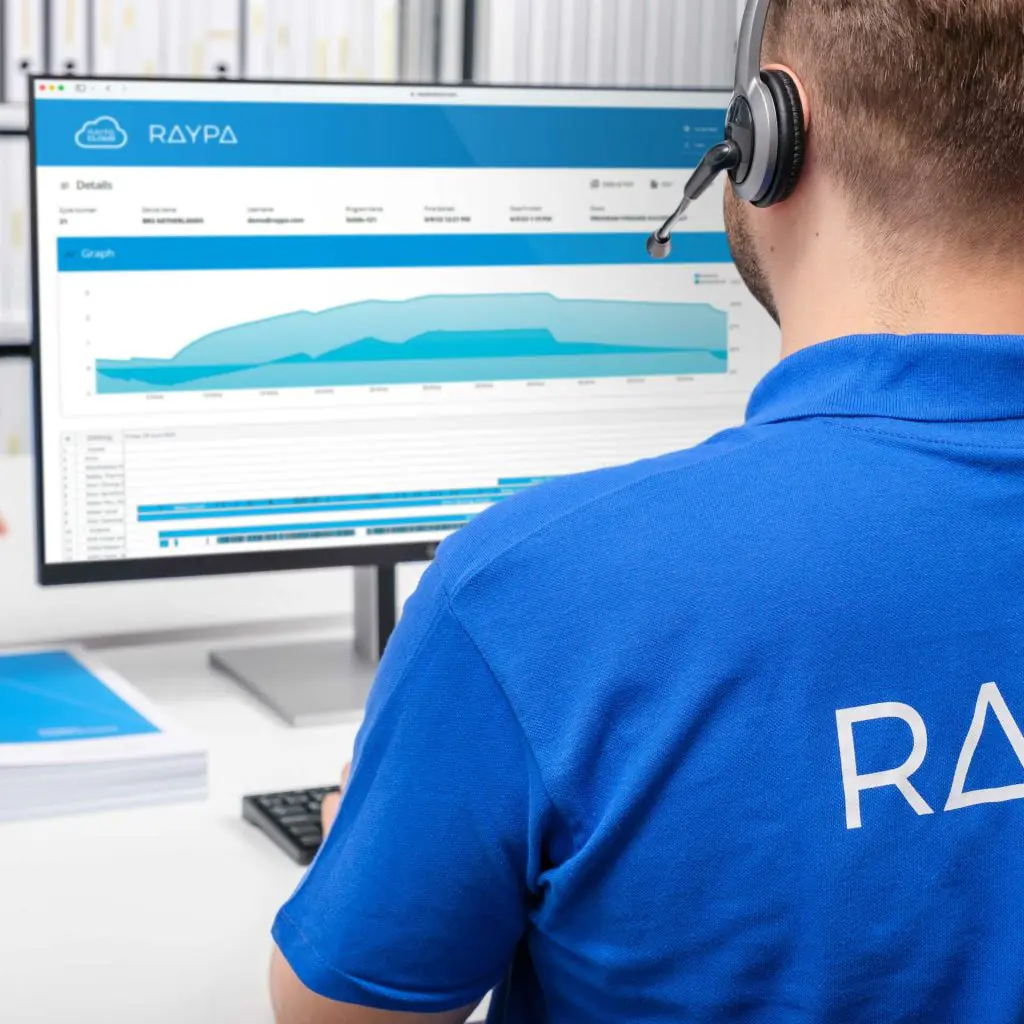

Advanced Cloud-based connectivity, remote control of several devices at once
Bacteriological filter at the air inlet

Advantages

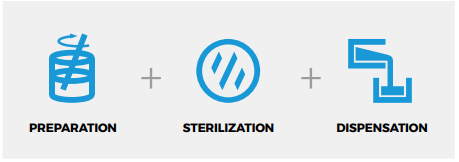

Preparation, sterilization, cooling and dispensing all integrated into the same equipment
Reduced cooling phase time by up to 60% compared to a traditional autoclave
Built-in temperature probe, F_o controlled sterilization
High power adjustable magnetic stirrer from 50 to 200 rpm
Adjustable dispensing temperature
Programmable peristaltic pump
Automatic filling from the water network; water cooled direct discharge

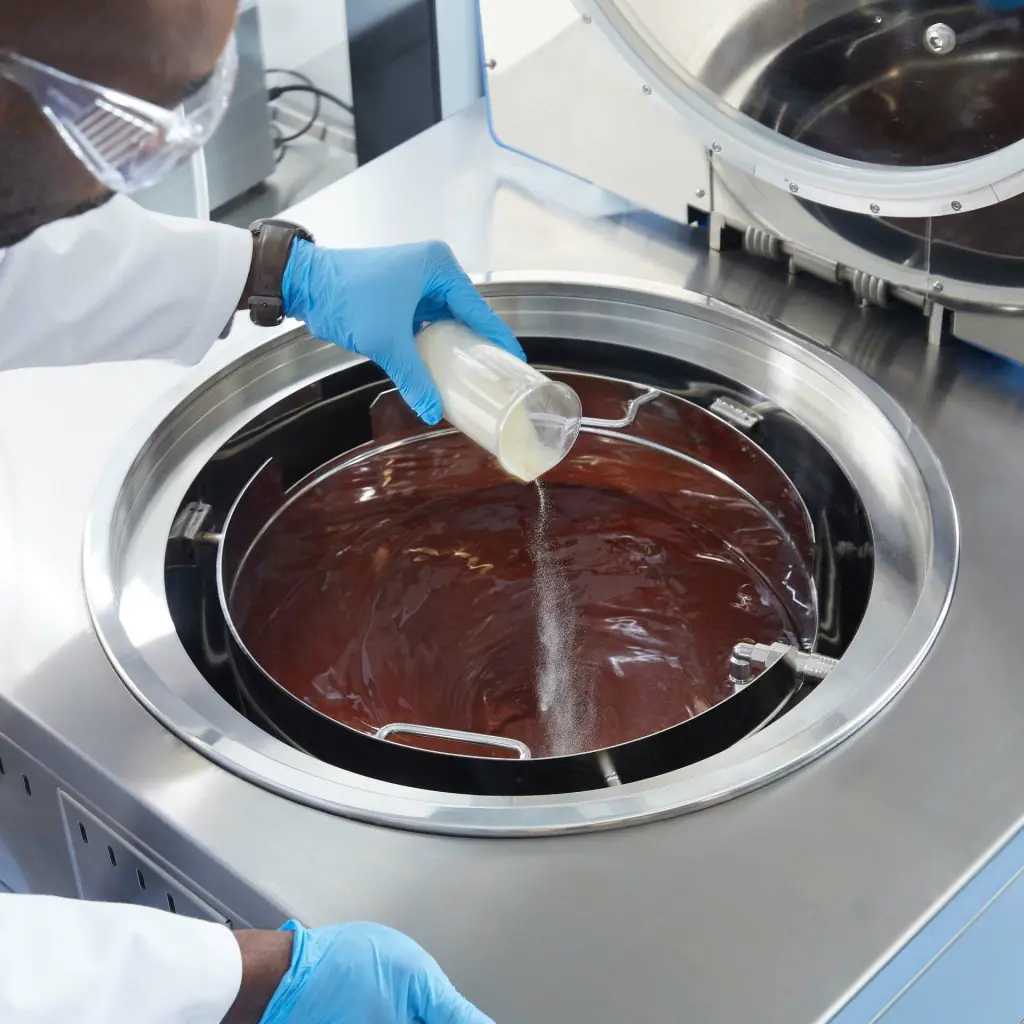

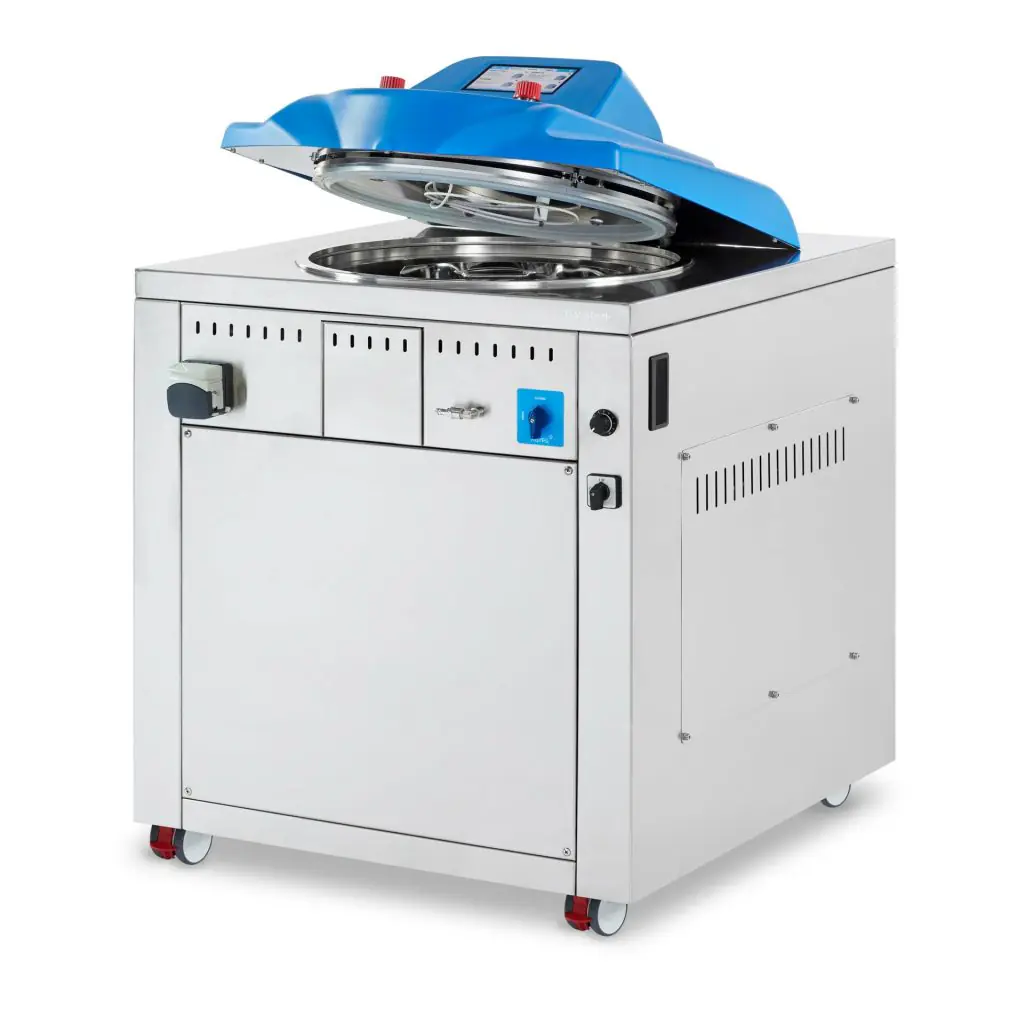

Easy and convenient cleaning and removal of the media tank thanks to the integrated handles. Dispensing lines can be cleaned each time with steam pulses
USB port (to download data and deploy updates) and Ethernet port for PC connection
Optional built-in printer
Barcode scanner

Safety

Safety valve and thermostat
Hydraulic lid blocking system while existing positive pressure in the chamber
Open lid sensor
Water level detector
ASME inspected and approved – please inquire

Models	TLV-40MP	TLV-60MP	TLV-80MP	TLV-100MP
Production capacity min – max	5 – 36 L	10 – 54 L	20 – 72 L	20 – 90 L
Total cycle duration	70 – 80 mins	85 – 95 mins	65 – 90 mins	70 – 100 mins
Usable chamber dimensions	13 x 18.1 inches / 330 x 461 mm	13 x 27.4 inches / 330 x 696 mm	16.5 x 23.4 inches / 420 x 594 mm	16.5 x 28.9 inches / 420 x 734 mm
External dimensions L x D x H	29.5 x 38.6 x 42.5 inches / 750 x 980 x 1080 mm	29.5 x 38.6 x 51.2 inches / 750 x 980 x 1300 mm	33.5 x 42.5 x 47.2 inches / 850 x 1080 x 1200 mm	33.5 x 42.5 x 52.8 / 850 x 1080 x 1340 mm
Duration of heating phase from 25 to 121ºC with max volume	40 mins	55 mins	30 – 45 mins	35 – 55 mins
Duration of cooling phase from 121 to 60ºC with max volume	15 – 20 mins	15 – 20 mins	20 – 25 mins	20 – 25 mins
Power	12000 W	15000 W	20000 W / 30000 W	20000 W / 30000 W
Gross Weight	429.9 lbs / 195 Kg	451.9 lbs / 205 Kg	524.7 lbs / 238 Kg	584.2 lbs / 265 Kg
Voltage	400 V	400 V	400 V	400 V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
